ESP32 and TLV493D Magnetometer

Having spent the last two months struggling with setting up this magnetometer, I figured I should put my findings together to help anyone else who is also trying to use these devices together.

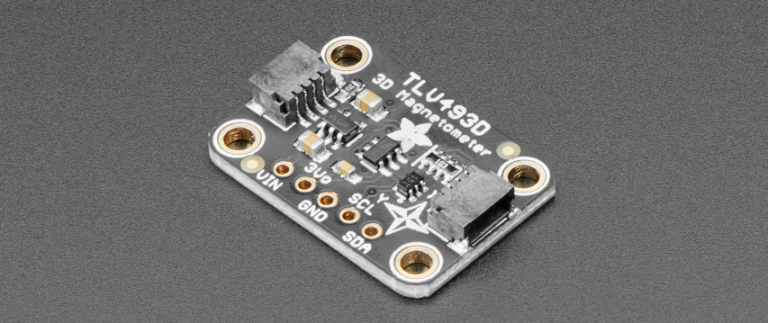

A printed circuit board which allows the TLV493D magnetometer to be used.

Code

    void setup() {

      Serial.begin(115200);

      while(!Serial);

      Tlv493dMagnetic3DSensor.begin();

      Tlv493dMagnetic3DSensor.setAccessMode(Tlv493dMagnetic3DSensor.FASTMODE);

      Tlv493dMagnetic3DSensor.enableInterrupt();

      // the interrupt is indicated with a short(1.5 us) low pulse on SCL when new results are ready to read

      Wire.setClock(1000000);

      // Set I2C clock speed to 1MHz (Fast Mode Plus)

      Tlv493dMagnetic3DSensor.disableTemp();

      pinMode(INTERRUPT_PIN, INPUT);

      // sets the interrupt pin 2 as input

      pinMode(22, INPUT);

      // sets the SCL pin 22 as input

      attachInterrupt(digitalPinToInterrupt(INTERRUPT_PIN), onRead, FALLING);

      // not sure whether to use LOW or FALLING

    }
